VW T5–T6.1 Roof Panel Topography Edition
£280.00
Precision-engineered for the VW Transporter T5–T6.1, this HEX ply roof panel kit is CNC-cut from durable 6.5mm HEX board and updated with custom Topography detailing. Tailored to fit both SWB and LWB models with total accuracy—simply select your required panels from the drop-down menu.
VW Transporter SWB and LWB HEX Ply Van Roof Lining Kits Upgrade your interior with our premium 6.5mm RIGA HEX board lining kits. CNC-cut with a Birch core for a precision fit, these panels are designed to follow the exact OEM factory contours. Unlike standard short panels, our rear sections feature a true full-height design, extending all the way to the floor behind the wheel arch for a superior, professional finish.

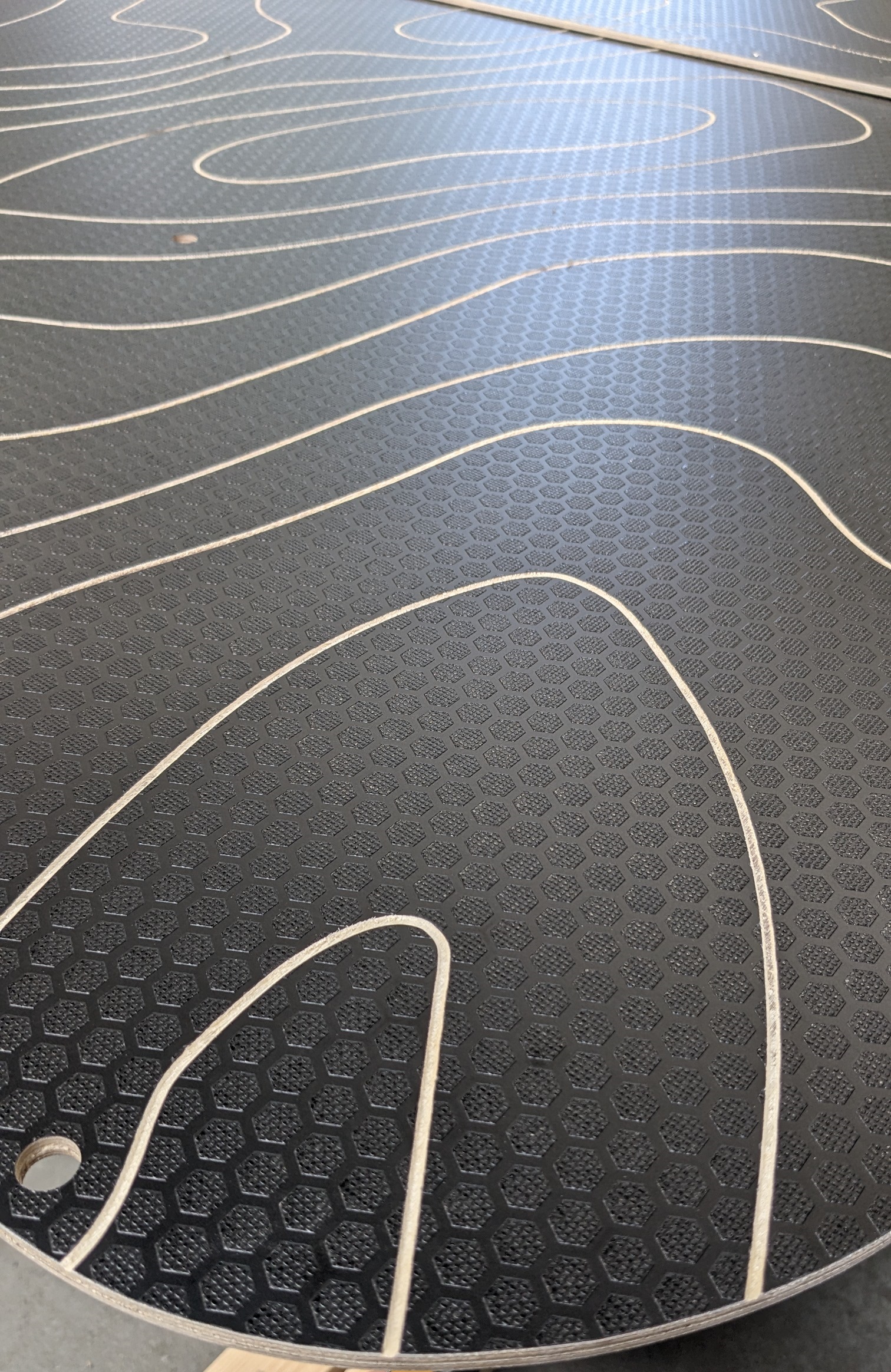

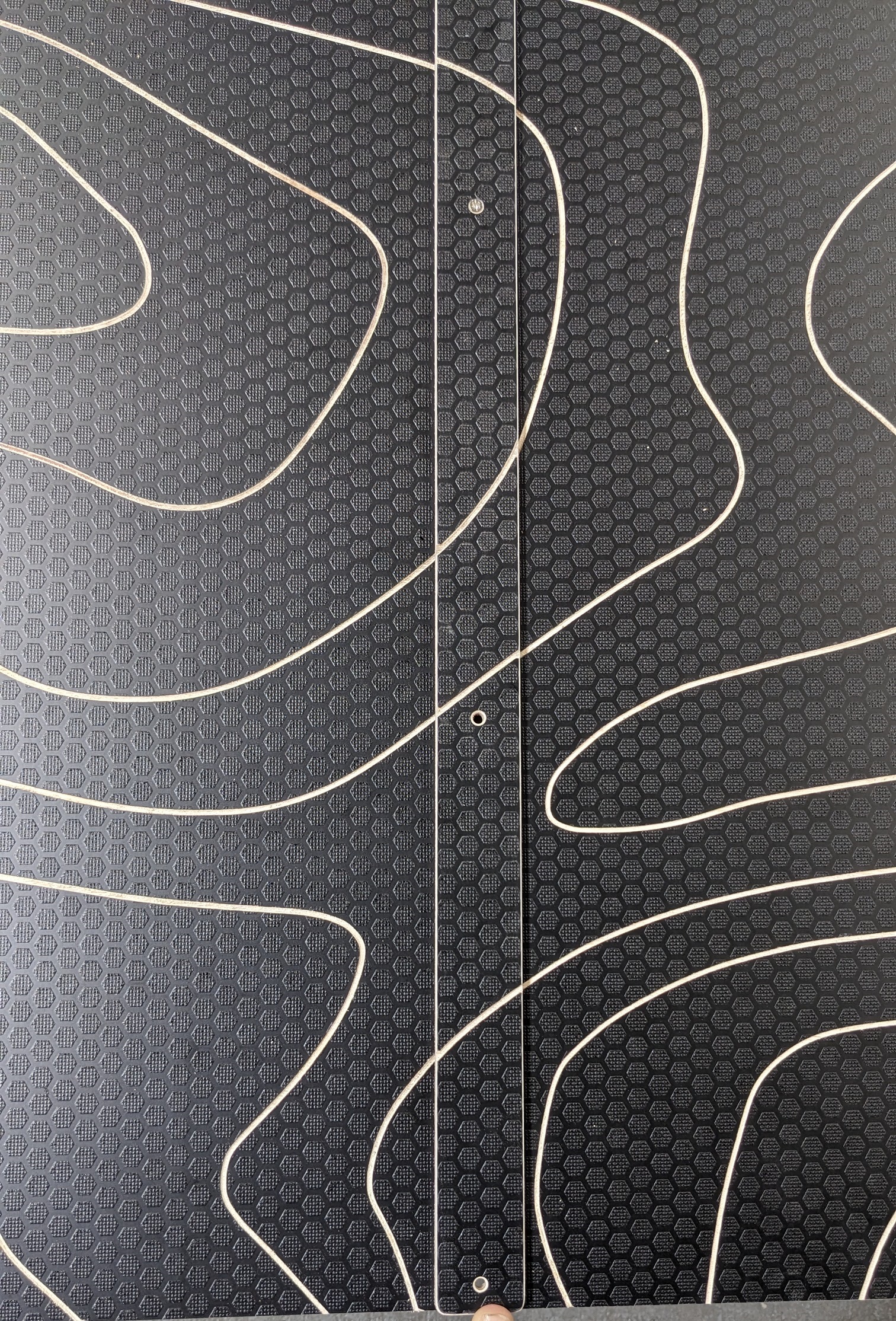

To upgrade the aesthetic, we’ve integrated a striking Topography pattern, precision V-cut 2mm deep directly into the hex ply surface.
Each section is pre-drilled with 12mm holes to align with your van’s original clip points, making installation quick and straightforward.
Spotlight hole sizes & layout:
-
SWB: 6 x 58mm spotlight holes
What’s Included:
-
2 x roof panels
-
2 x cover strips
-
Screws and fixings
Please note: These van ply panels require longer fitting clips (available in the drop down) or seperately in our other shop listings. Hidden clips and OEM-style clips are too short. You will be sent the correct quantity for the number of panels chosen.
Photos shown are for reference — the render displays a lighter and larger HEX pattern than the actual board.
While we aim to provide accurate images, please note that all pictures are for illustration purposes only and may not show the exact kit for your vehicle.
| Pattern | NONE, LINES, HEX |
|---|---|
| Spotlight Hole Size | 55mm DIAMETER |
| Material | Beech Ply |
Installation Guide
VW T7 & New Transit Custom Roof Panel Installation Guide
CAUTION – AIRBAG CURTAIN IS FITTED TO TOP OF B PILLAR PANELS!
CAUTION – Before drilling, make sure all cables are safely moved out of the way.
- General Notes
The new vehicles are more complicated than the older generation, so they require more work to fit. All parts are cut and ready to fit.
- Pre-Installation Actions
- Wire in your spot lights and leave the cables hanging above the holes in the roof panel.
- Rear Alarm Sensor Modification – Remove the rear alarm sensor at the centre rear of the vehicle.
- Vehicle Preparation
Main center spar at rear of headlining.
- There are 4 grey firtree clips holding the headlining in place. These can be prized out slightly while remaining in place or you can remove completely and refit with new. The purpose is to allow the head lining to drop slightly so the roof panel can slide in between this and the roof spar.
Passenger Side B-Pillar
- Behind the top of the seat belt panel there is a cable clip which needs to be removed.
- Cut out the clip above the side curtain airbag to allow the cable to move and create space for the roof panel.
Driver Side B-Pillar
- Behind the top of the seat belt panel there is a cable glued to the headlining, this need removed carefully from the headlining to allow the roof panel to slide in.
Driver’s Side (Between C and D Pillars)
- There are three plastic cable clips at the rear driver’s side.
- Remove these and move the cable upwards to avoid clashing with the roof panel.
- Filling Gaps at the B-Pillar Headlining
Four pieces are supplied:
- 2 × 12mm rear wings:
- Suede line the roof panel first.
- Screw these through the two pre-drilled holes from the rear of the roof panel.
- These sit just behind the headlining panel once the roof is fitted.
- 2 × 5.5mm front wings:
- Carpet line these pieces.
- Offer them into position over the gap and screw them into the already fitted 12mm wings.
Important: Some vans have headlining’s positioned slightly differently during production. Always dry-fit the pieces after the rear wings are installed to confirm if any trimming is required before lining.
- Fitting the Roof Panel in the Van – Test fit
- With a second person, offer the roof panel up to the vehicle. And slide into place under headling at front of van
- Please note: during development we found that roof spar hole positions varied from van to van, showing there is some manufacturing tolerance in the body. Because of this, the pre drilled holes in the roof may not align with the factory holes. Offer the roof up to the van, check the alignment, and then drill to suit your vehicle — either by slightly elongating the holes or using a step drill to achieve the correct fit. Test refit roof to ensure all holes align.
- Carpet or suede line van to your requirements and refit in position
- The cables above the spotlight holes sliding door for the HALO LED now need to be connected and pushed up behind the roof panel.
- Push the panel firmly up against the roof spar and insert a clip.
- Move to the next hole and repeat until all clips are fitted.
- Rear Alarm Sensor Modification
- Locate the previously removed rear alarm sensor.
- Split the plastic holder by undoing the clips; discard the rear half.
- Drill two screw holes into the remaining front half of the holder.
- Screw this into the HALO roof panel opening with the 2 x black screws supplied.
- Optionally spray the plastic black if the original colour is light grey.
- Make sure the cable has enough length before fitting — it may be tight and require pulling through a little extra slack.
- Final Step
- Fit the front wings to cover the remaining gap in the headlining.
- Connect the spot lights to the cables you fitted in section 2 through the holes in the ceiling panel, test and push spots into place.
