LED COB Flexible Strip light (HALO)
£8.00

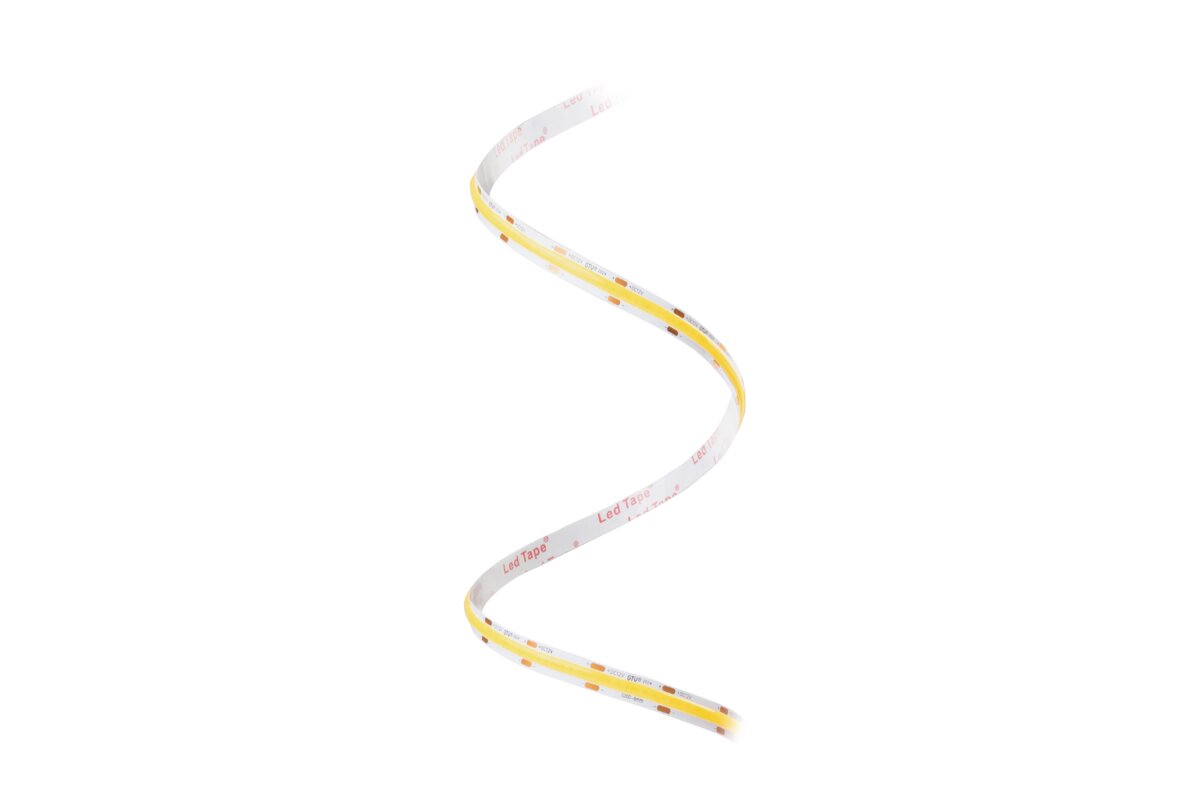

Achieve a seamless, professional glow in your camper van with this ultra-slim 12V COB Warm White LED Strip Light. Featuring advanced Chip-on-Board technology, it delivers a continuous, dot-free line of light—making it the ultimate choice for halo roof builds, ceiling recesses, and ambient interior lighting.
12V COB LED Strip Light – Ideal for Van Conversion Halo Roofs
Achieve a seamless, professional glow in your camper van with our high-density 12V COB Warm White LED Strip. Utilising advanced Chip-on-Board (COB) technology, this strip delivers a perfectly smooth, uniform line of continuous light with zero visible dotting—making it the ultimate lighting solution for custom Halo Roof builds, ceiling recesses, and interior feature lighting.
At just 8mm wide, its slim profile fits effortlessly into narrow channels and tight mounting spaces. Available in pre-cut 5m lengths for Short Wheelbase (SWB) and 6m lengths for Long Wheelbase (LWB) vans, it makes ordering for your specific vehicle size simple while minimising waste. Cut points every 25mm allow you to fine-tune the strip to the exact dimensions of your halo frame or furniture layout.
Key Fea`tures & Benefits
-

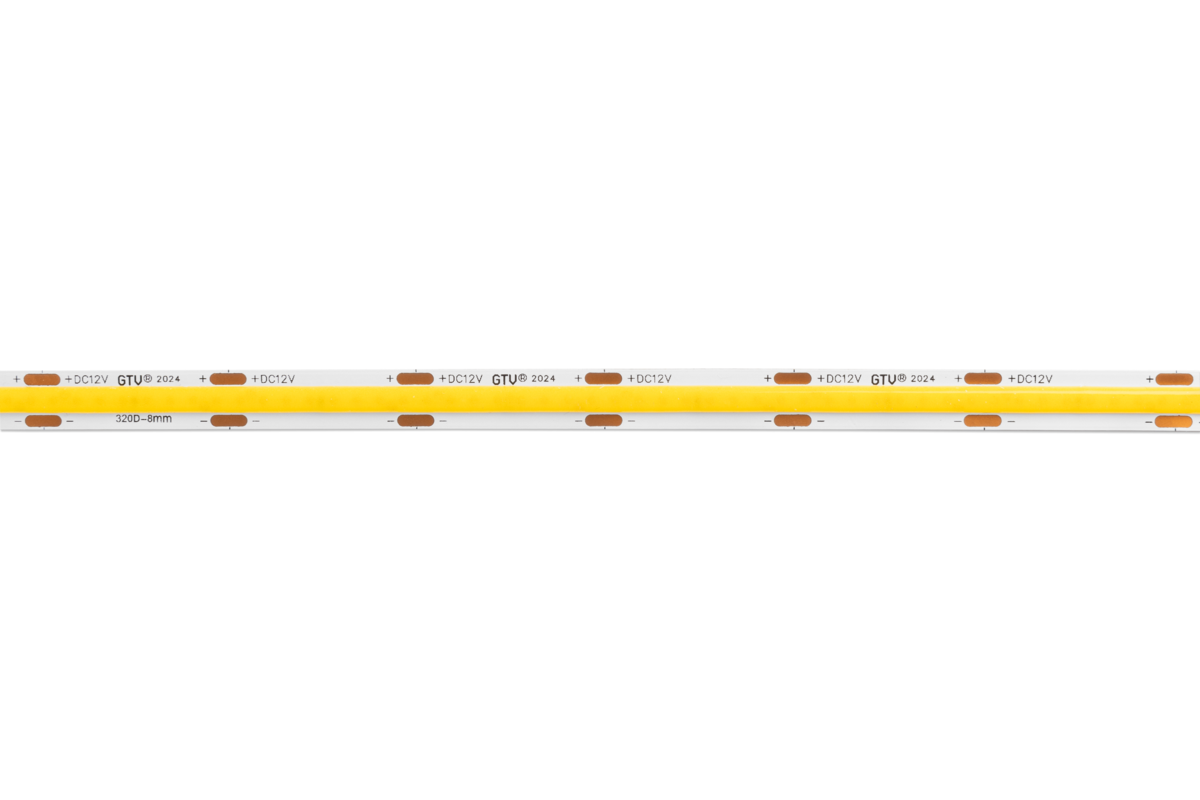

Seamless COB Glow: Continuous 180° diffusion with 480 LEDs per meter—eliminates spotty hot-spots through diffuser covers.
-
Halo Roof Proven: Designed to deliver sleek, atmospheric indirect lighting in campervans, motorhomes, and architectural interiors.
-
Sized for Your Van: Available in 5m (SWB) and 6m (LWB) lengths to fit your vehicle framework perfectly.
-
Easy Customisation: Cut to length every 25mm to match your exact panel dimensions.
- 12V DC System: Operates on standard 12V vehicle power systems

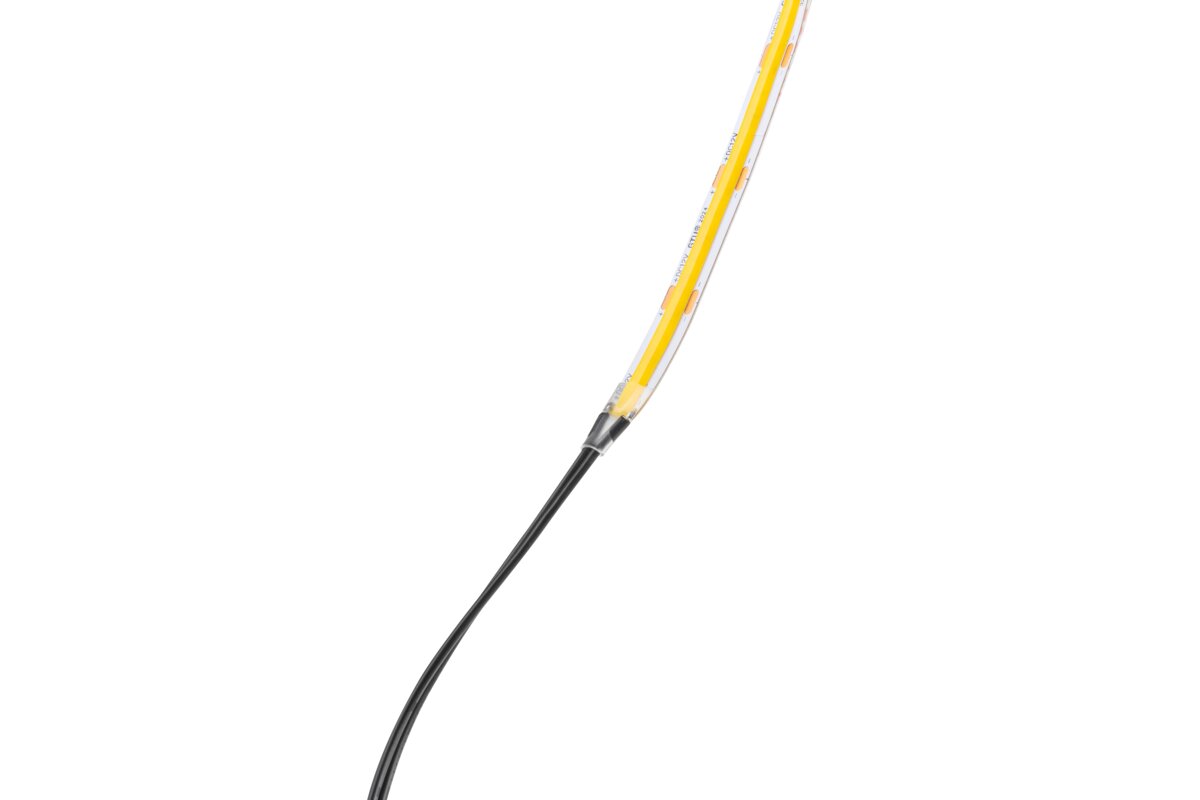

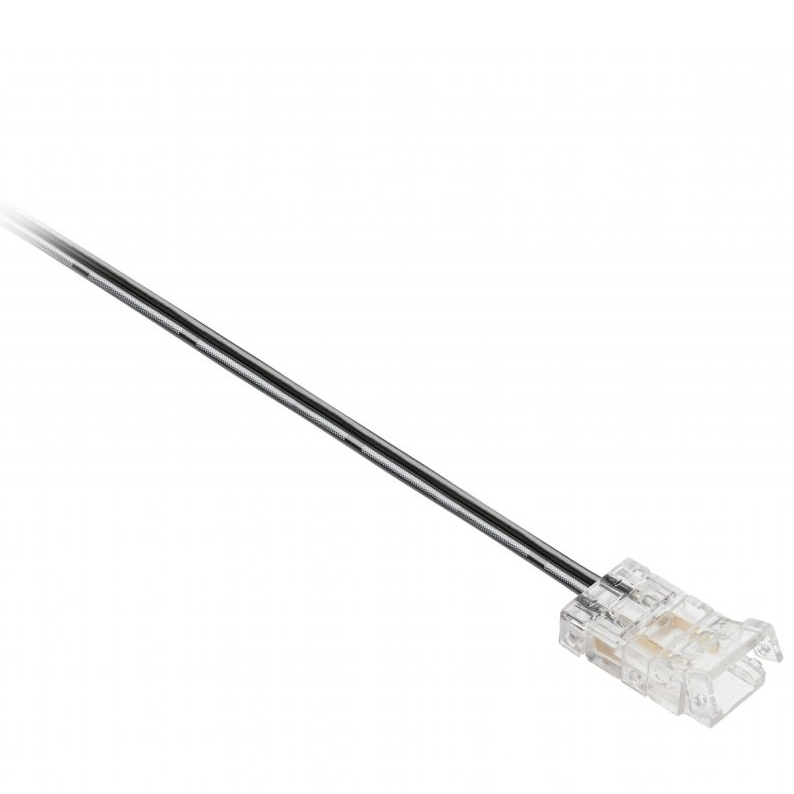

2m COB Light Strip Connectors –Easily connect your COB LED strips directly to your vehicle’s 12V power supply. While connection cables can be soldered directly to the COB strip in tight spaces, using these plug-and-play connectors is much simpler and eliminates the need for specialist soldering skills. Please refer to the included wiring diagram for detailed instructions.
-
Up to 5m (typically SWB): Requires 1 connector attached to one end.
-
5m to 10m (typically LWB): Requires 2 connectors (one attached to each end).
| Colour | Warm White |
|---|---|
| Specifications | Product Specifications LED Technology: COB (Chip-on-Board) LED Density: 480 LEDs per meter Input Voltage: 12V DC Power Output: 10 W/m Luminous Flux: 650 – 800 lm/m Beam Angle: 180° Dimensions: 8mm (W) x 1.4mm (H) Cut Distance: Every 25mm IP Rating: IP20 (Indoor / Interior Use Only) Dimmable: Yes Lifespan: > 30,000 Hours Operating Temperature: -20°C to +40°C Sizing Options: 5m (SWB), 6m (LWB) |
Wiring information

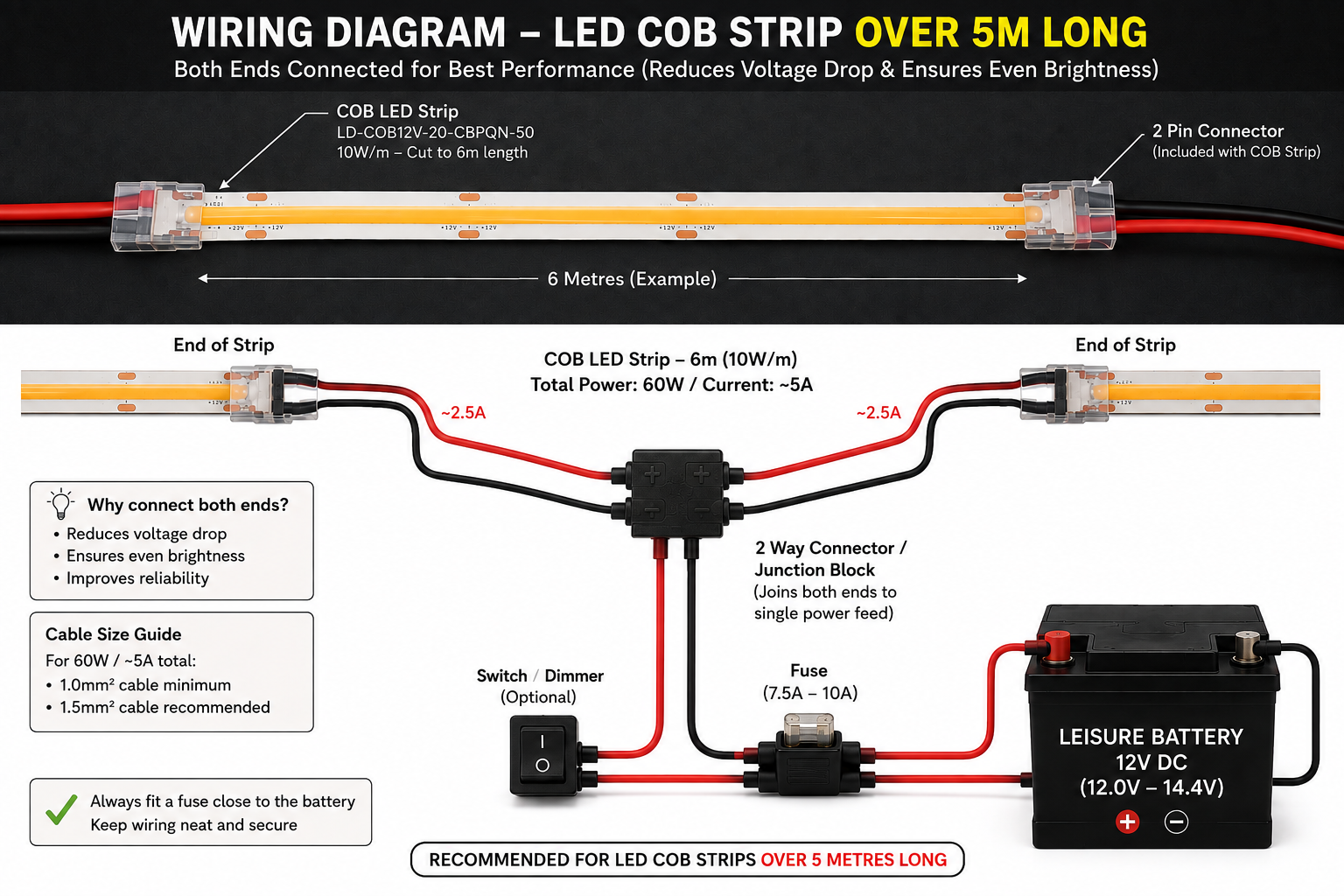

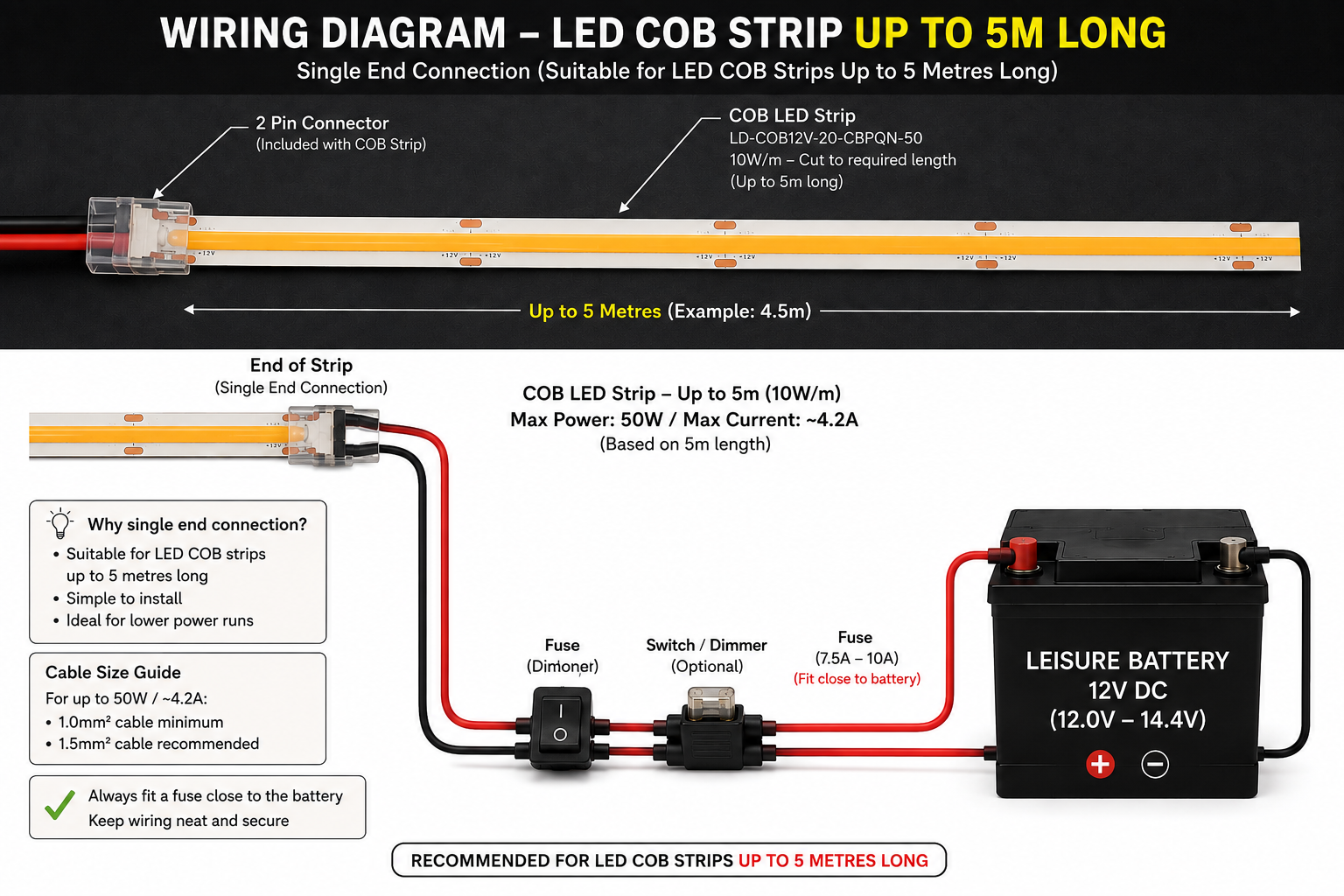

Wiring & Installation Guidance This wiring diagram illustrates standard setups for runs up to 5m (SWB) and 5m–10m (LWB).
-
Up to 5m (SWB): Requires a single power connector at one end.
-
5m to 10m (LWB): Requires power injection using connectors at both ends to distribute the electrical load evenly and prevent dimming.
Note: This diagram is provided for guidance purposes only. We accept no liability or responsibility for errors, damage, or improper installation.
