VW Transporter T5–T6.1 Tailgate HEX PLY Panel
Price range: £72.00 through £79.00

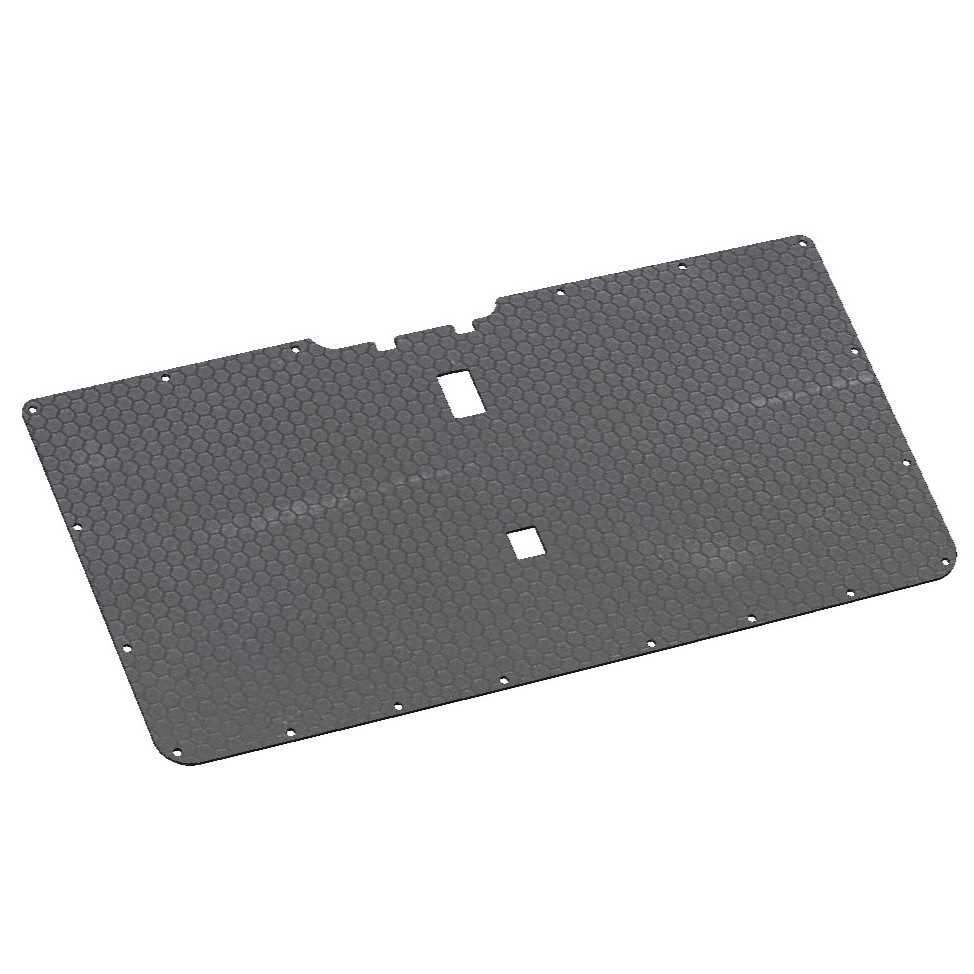

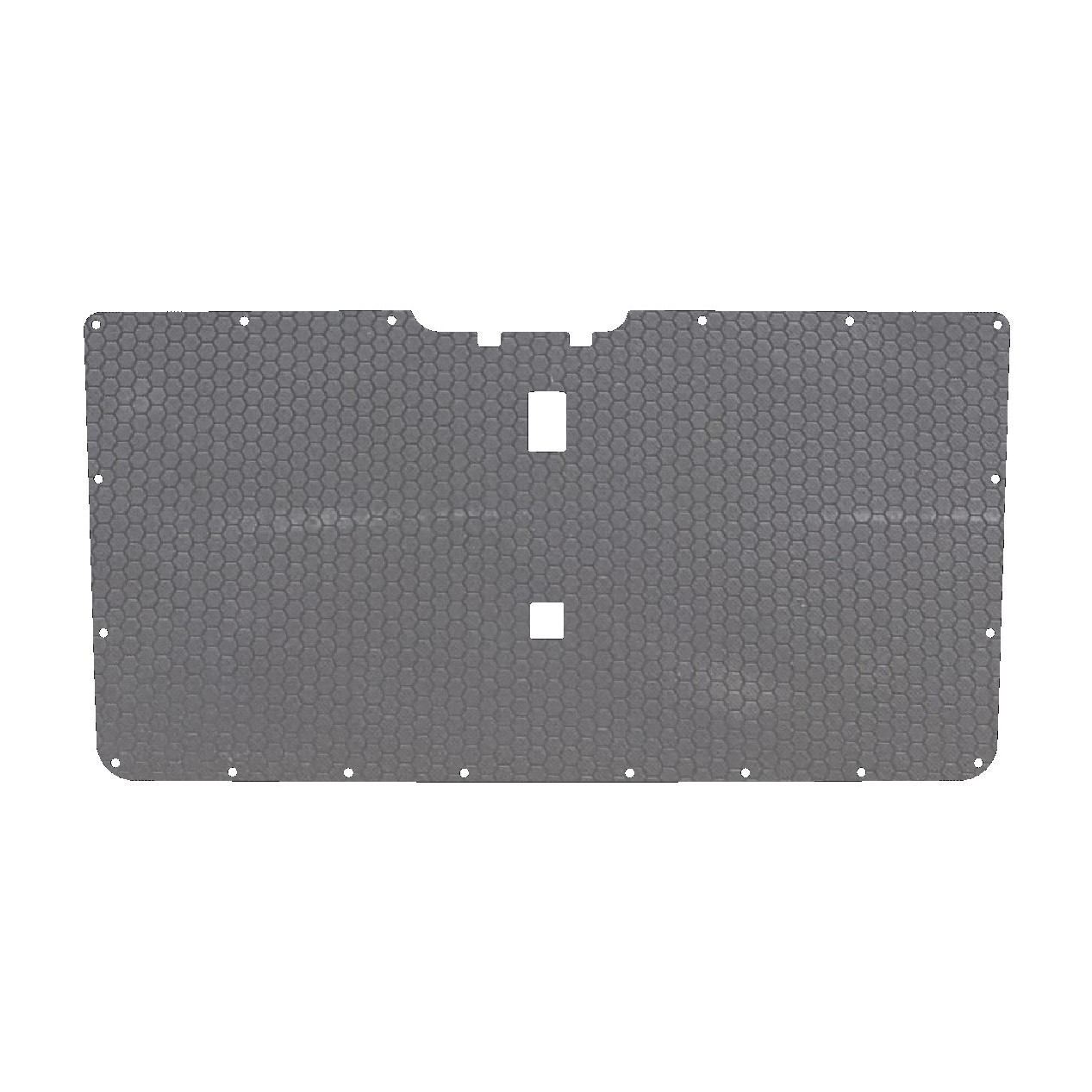

Tailgate HEX Birch ply panel to rear tailgate door on VW Transporter. CNC-cut from 6.5mm HEX board for a precise fit.
VW Transporter SWB HEX Ply Van Lining Kits Upgrade your interior with our premium 6.5mm RIGA HEX board lining kits. CNC-cut with a Birch core for a precision fit, these panels are designed to follow the exact OEM factory contours for a superior, professional finish.
Each section is pre-drilled with 12mm holes to align with your van’s original clip points, making installation quick and straightforward.
The lock section will be rebated to allow the factory electric switch to fit

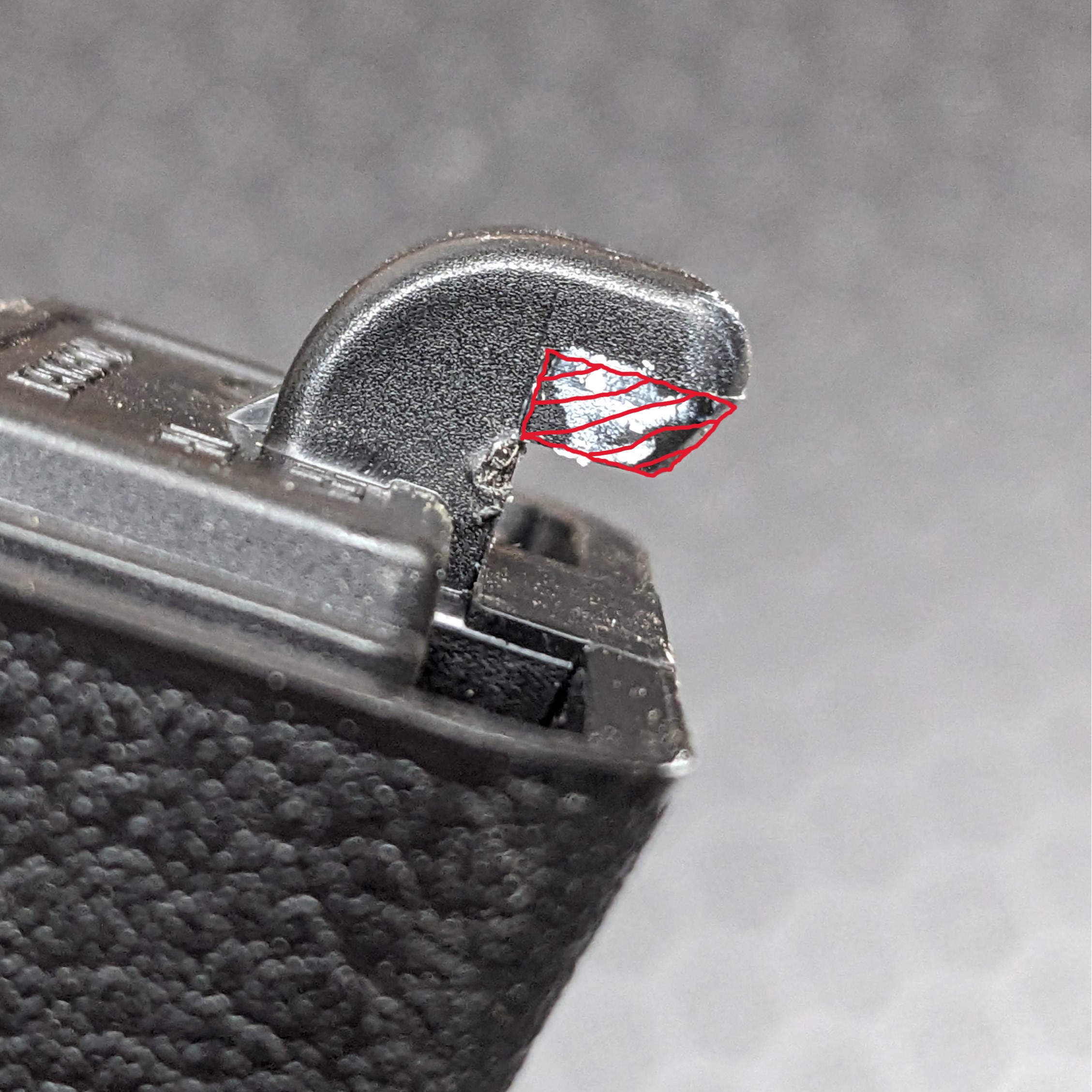

Please note: The OEM Pull Strap will not fit directly due to panel thickness. The rear plastic clip needs to be trimmed by around 3mm to fit correctly. See the image — the red section should be cut off along the manufacturing mark. ⚠️ Caution: don’t remove too much material. If unsure, trim a small amount first, test the fit, and recut as needed for a snug finish.
Wash/Wipe Cut-Out Option: This version includes a cut-out to fit around the wash/wipe motor. No Cut-Out: This option has a flat top panel with no cut-out for the wash/wipe motor.
Please note: These van ply panels require longer fitting clips (available as an option above) or seperately in our other shop listings. Hidden clips and OEM-style clips are too short.
Photos shown are for reference — the render displays a lighter and larger HEX pattern than the actual board.
While we aim to provide accurate images, please note that all pictures are for illustration purposes only and may not show the exact kit for your vehicle.
.
| Panel Thickness | 6.5mm |
|---|---|
| Material | HEX Ply, HEX, BIRCH Core |
| Colour | Black Hex |
| Whats Included? | 1 x Tailgate lower panel with electric lock and/or and pull strap, cut out (available with or without rear wash/wipe cut-out) |
| What about Clips? | Panel clips are available aseperately from our shop |
Characteristics
Moisture Resistance: Phenolic resins create a barrier that prevents water absorption, rot, and fungal growth, making it ideal for wet or humid environments.
Durability: The strong bond between veneers and the phenolic resin coating provides exceptional resistance to wear, abrasion, and impact.
Chemical Resistance: Phenolic ply is resistant to various chemicals, oils, and solvents, expanding its usability in industrial applications.
Anti-Slip Surface: Often, phenolic plywood is manufactured with a mesh pattern on one or both surfaces, enhancing its slip resistance.
Edge Sealing: Edges are typically sealed with acrylic paint to further reduce moisture penetration.
Temperature Resistance: It can withstand extreme temperatures, from -40°C to 120°C, making it suitable for various climates,
Longevity: The combination of its properties leads to a long service life, even in harsh conditions.
Applications: Commonly used in concrete formwork, trailer flooring, truck beds, and various construction and industrial projects.
